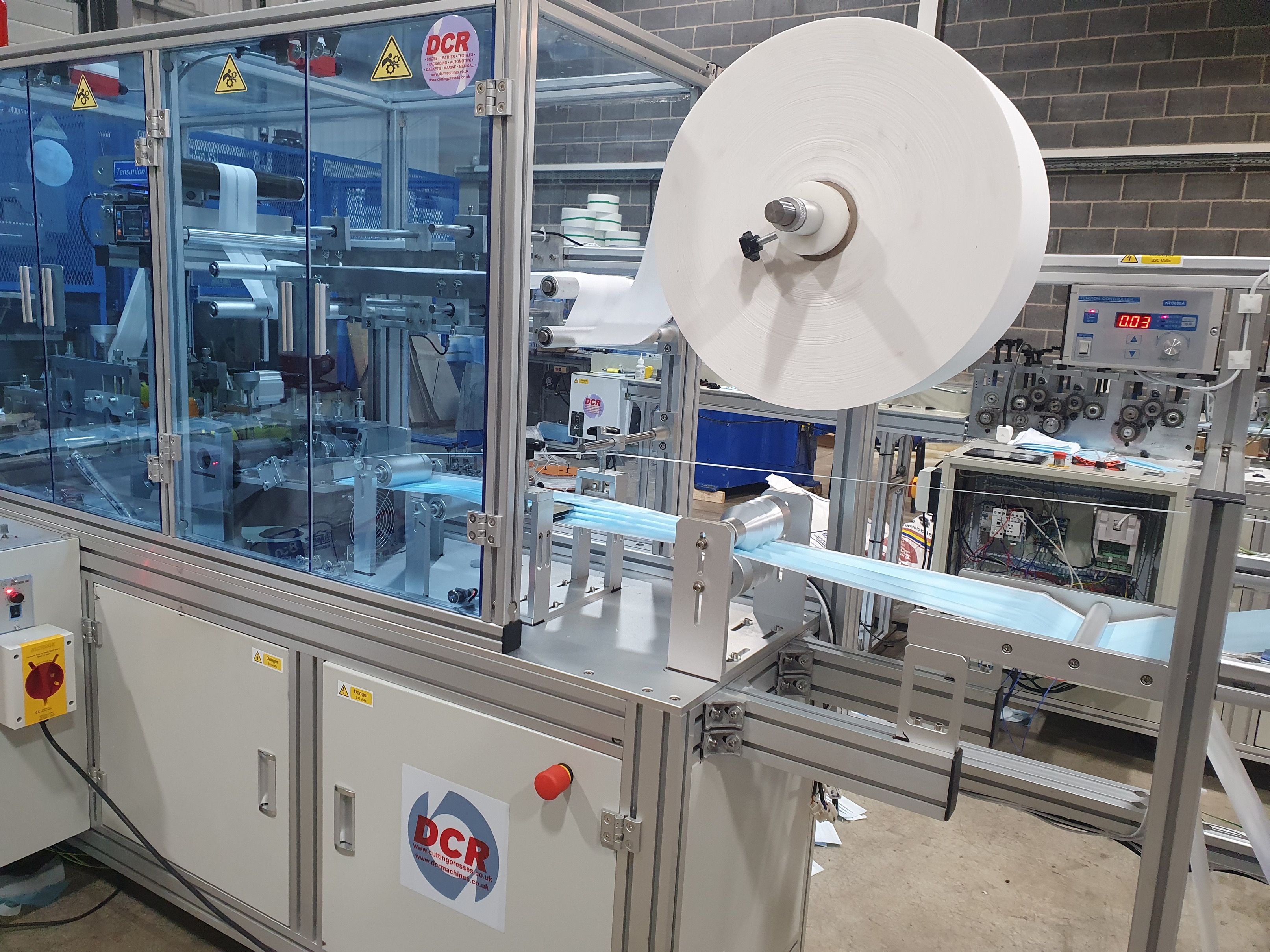

DCR-MMM200 MASK MAKING MACHINE 200/M

Automatic complete mask production line for PPE flat mask with built in soft elastic ear loop

Production capacity 200 masks per minute.

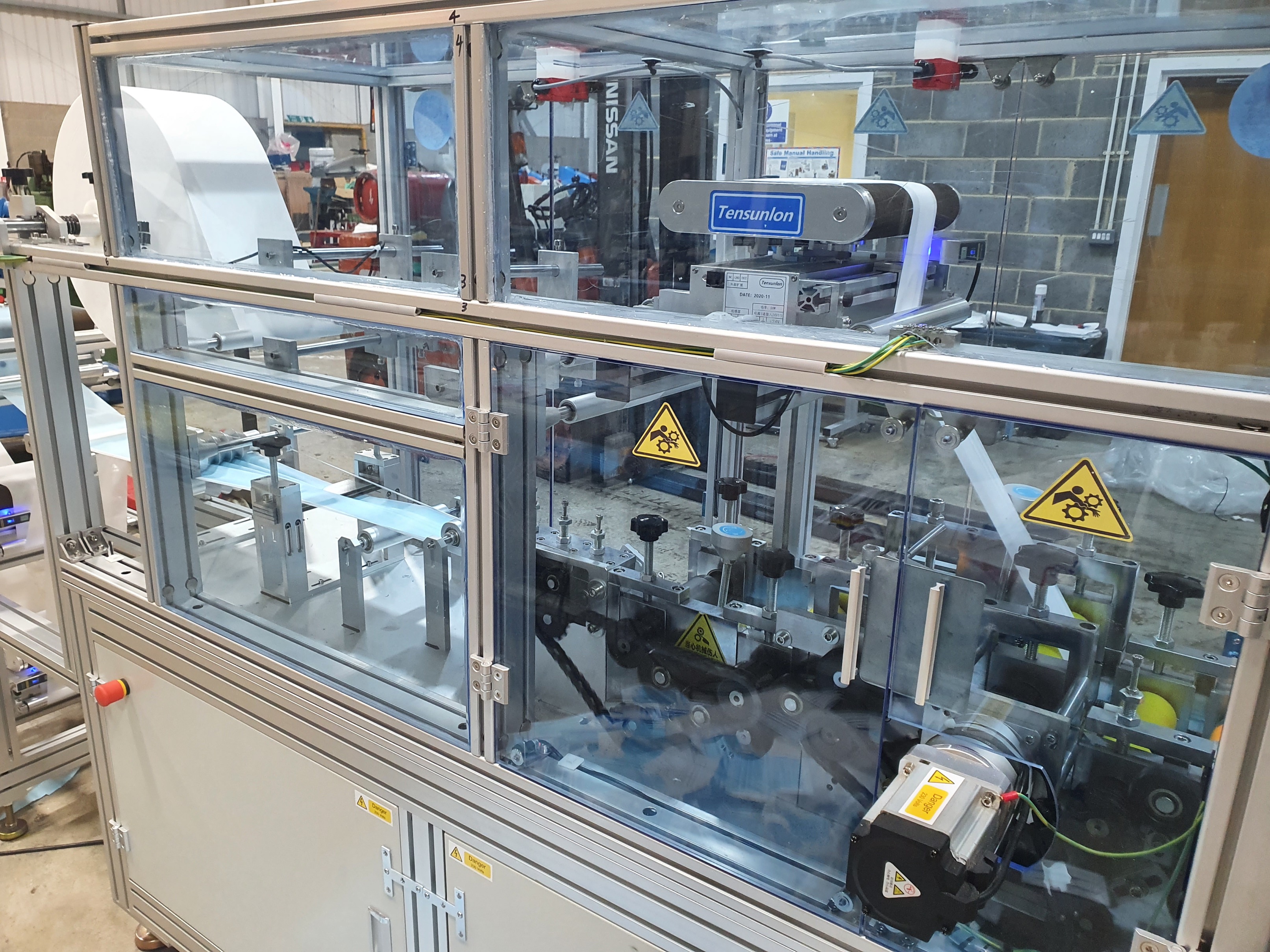

The machine will collate and weld using Ultrasonic via 2 stations. The mask will come off the machine complete with flat ear loops ready for packing.

Mask dimensions - Top layer spun bond 175mm, middle layer meltblown 175mm, cover layer spun bond 195mm and then a 4th layer to create attached ear loop.

Nose bridge is 3mm.

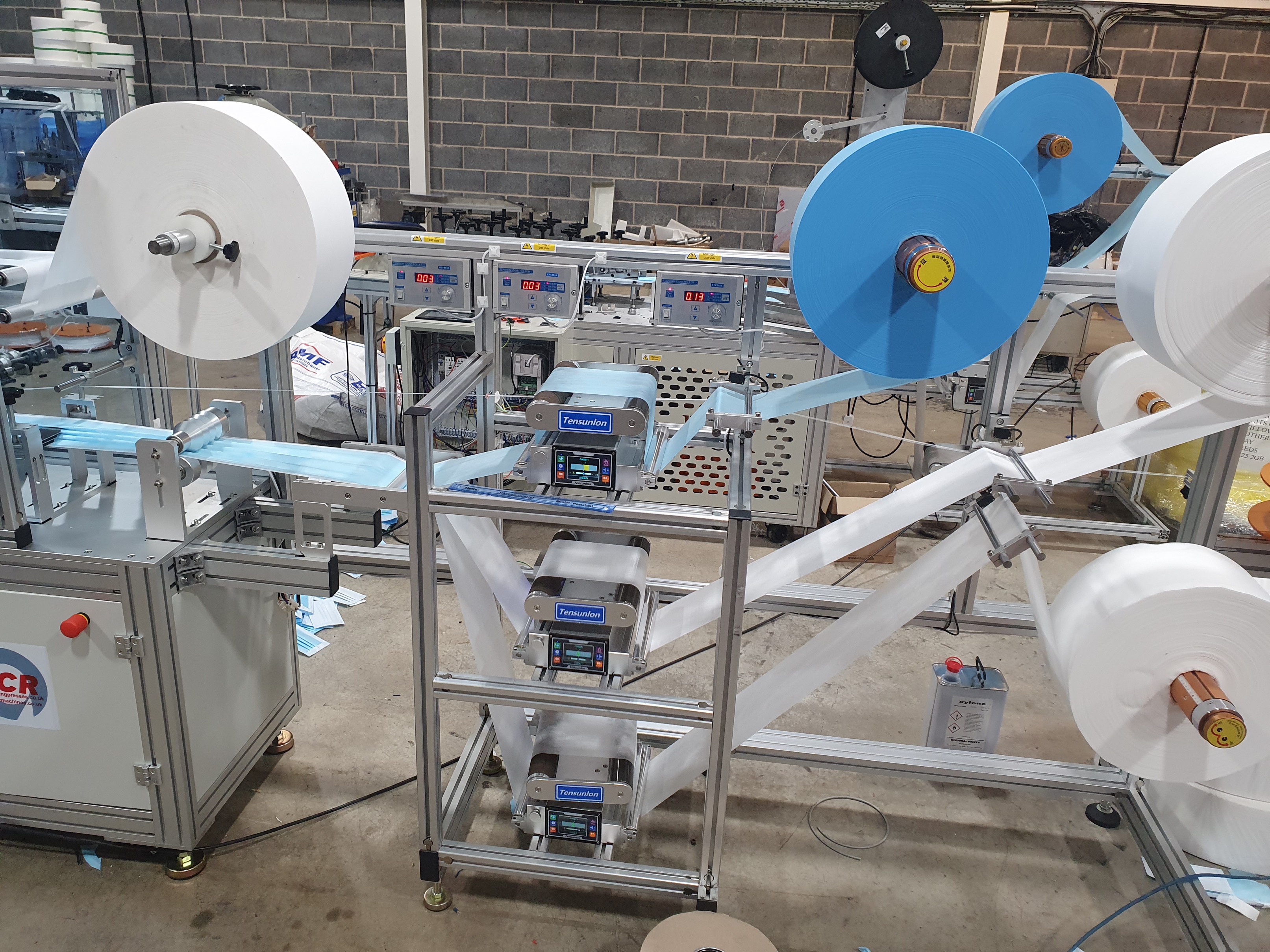

Mask body making area with feed in area. Three cloth rolls, with 2 non-woven rolls and 1 filter paper roll. A reel for the bridge of the nose along with the Mask body welding area.

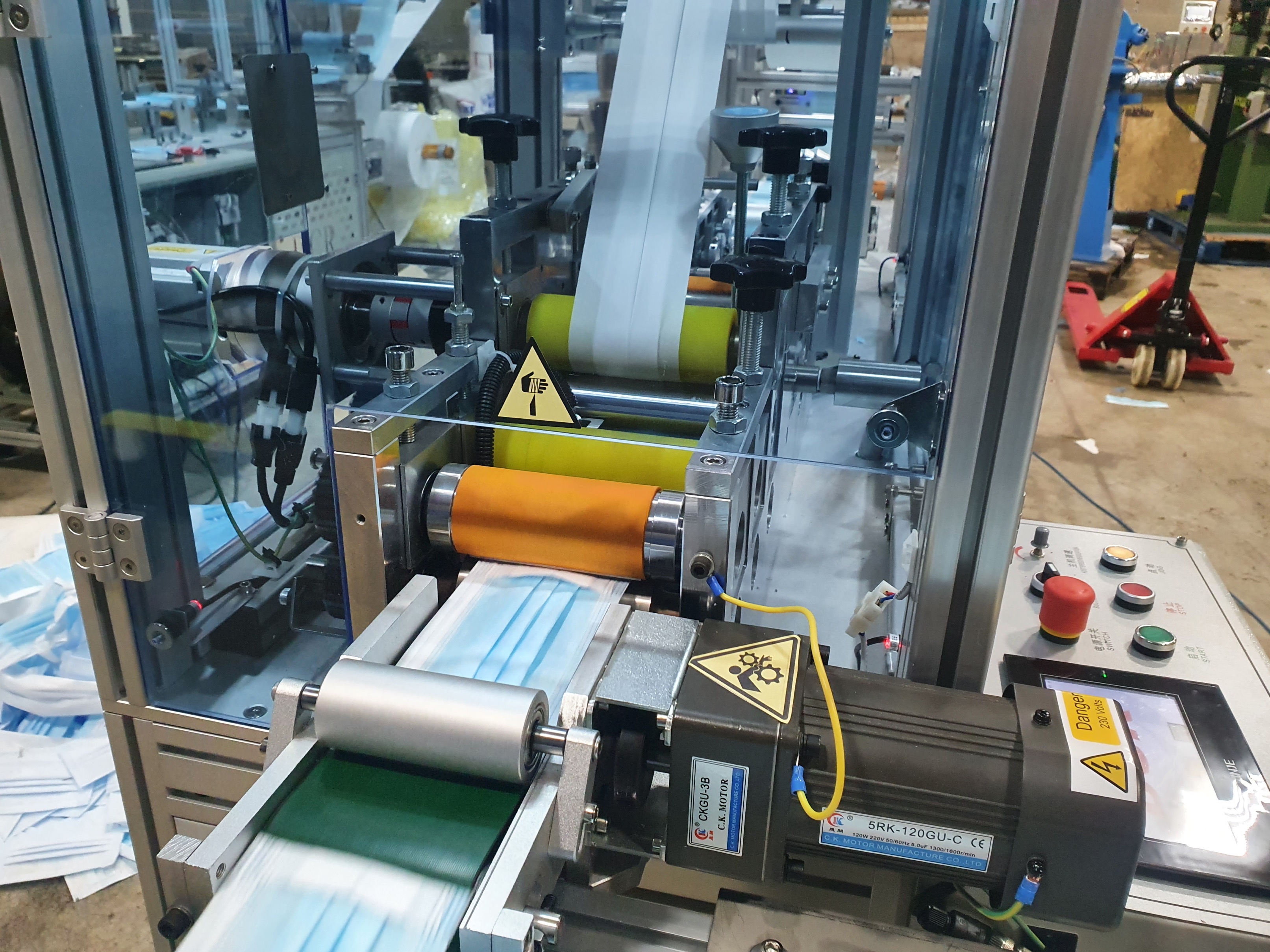

The mask body is welded on both sides (lengthwise), using ultrasonic welding, two rollers are with continuous welding.

The nose bridge is conveyed at the same time as welding on both sides. After welding on both sides in the length direction the machine will perform intermediate welding in the width direction and cut the mask to size.

The machine can also be supplied with optional packaging machine.

Material used is PP Non woven composite fibre plus melt blown

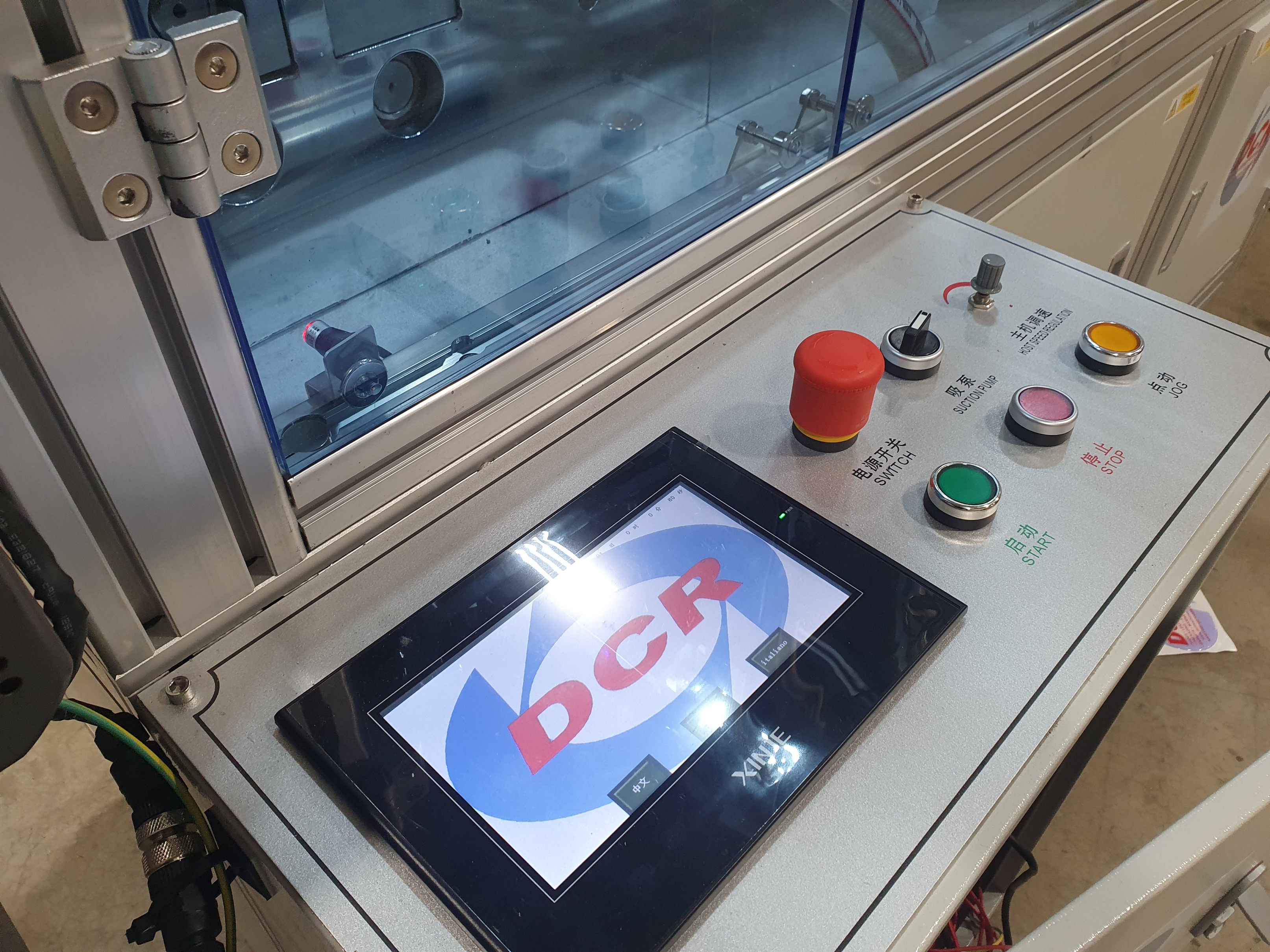

3 layers with automatic welding controlled by touchscreen operation

220v - single phase

We can also supply the PPE mask making material

For more information contact us
