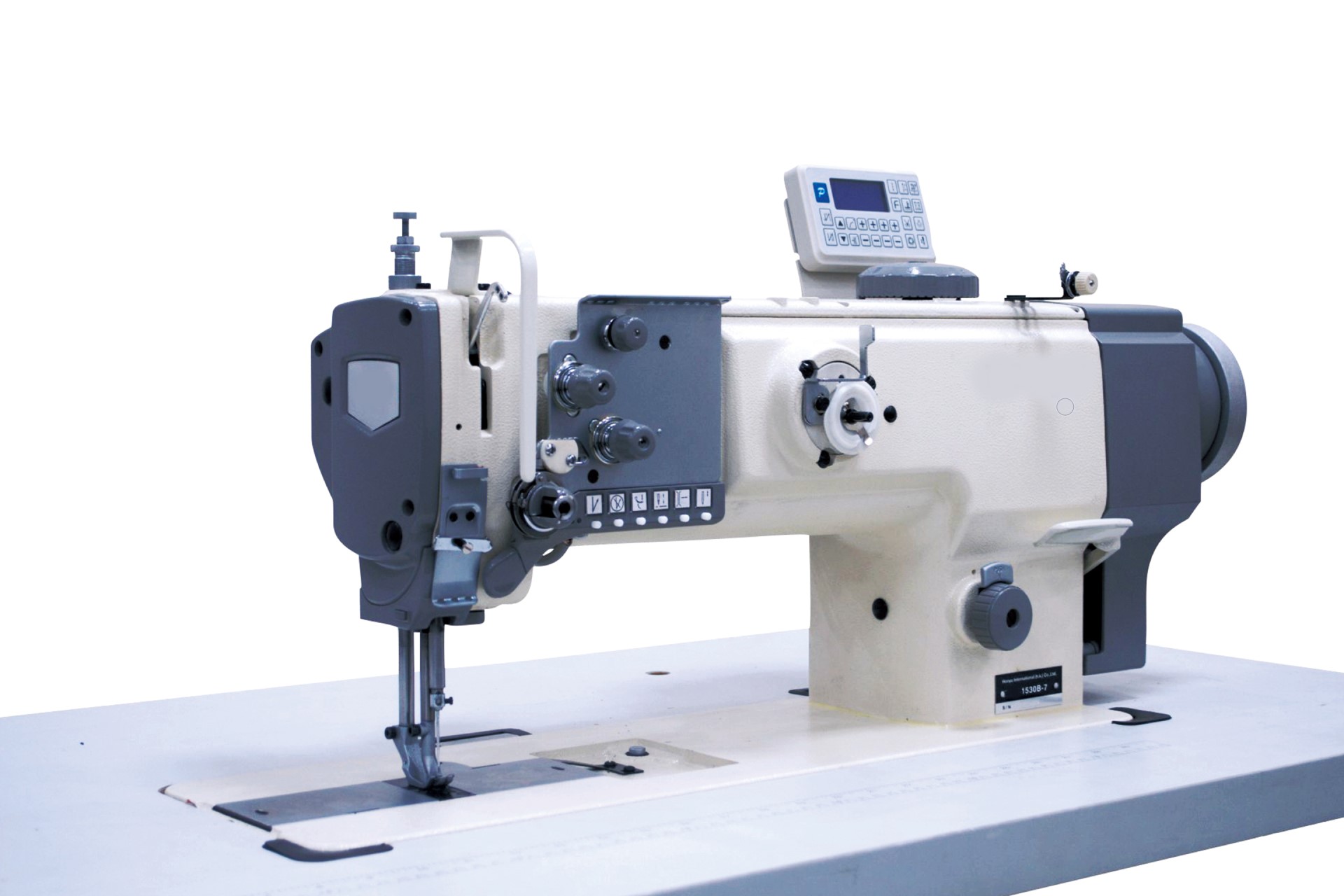

DCR-1530B

Flat bed, single needle compound feed sewing machine



Features:

• Multi-functionally equipped with auto trimming, auto back tacking, pneumatic presser foot lifting, integrated LED light and hands-free bobbin winder.
• Presser foot can be operated by via button and knee controller, simple and highly efficient.
• There are two different tension settings for quick clamping.
• Horizontal large hook.
• 10mm standard needle gauge set, pneumatic foot lift.
• Triple feed.
• Application : topstitch sewing process for soft furniture, car seating etc.



Specification:

Specification	Parameter
Feeding System	Alternating presser foot, feed dog and needle feeding
Hook	Horizontal large hook
Needle	DPX17 #18-#23
Stitch length	0-9mm
Operation space	335mmX125mm
Material	Medium to heavy material
Max presser foot lifting amount	16mm
Max sewing speed	2200rpm
