DCR PB1- Single Needle Post Bed industrial sewing machine

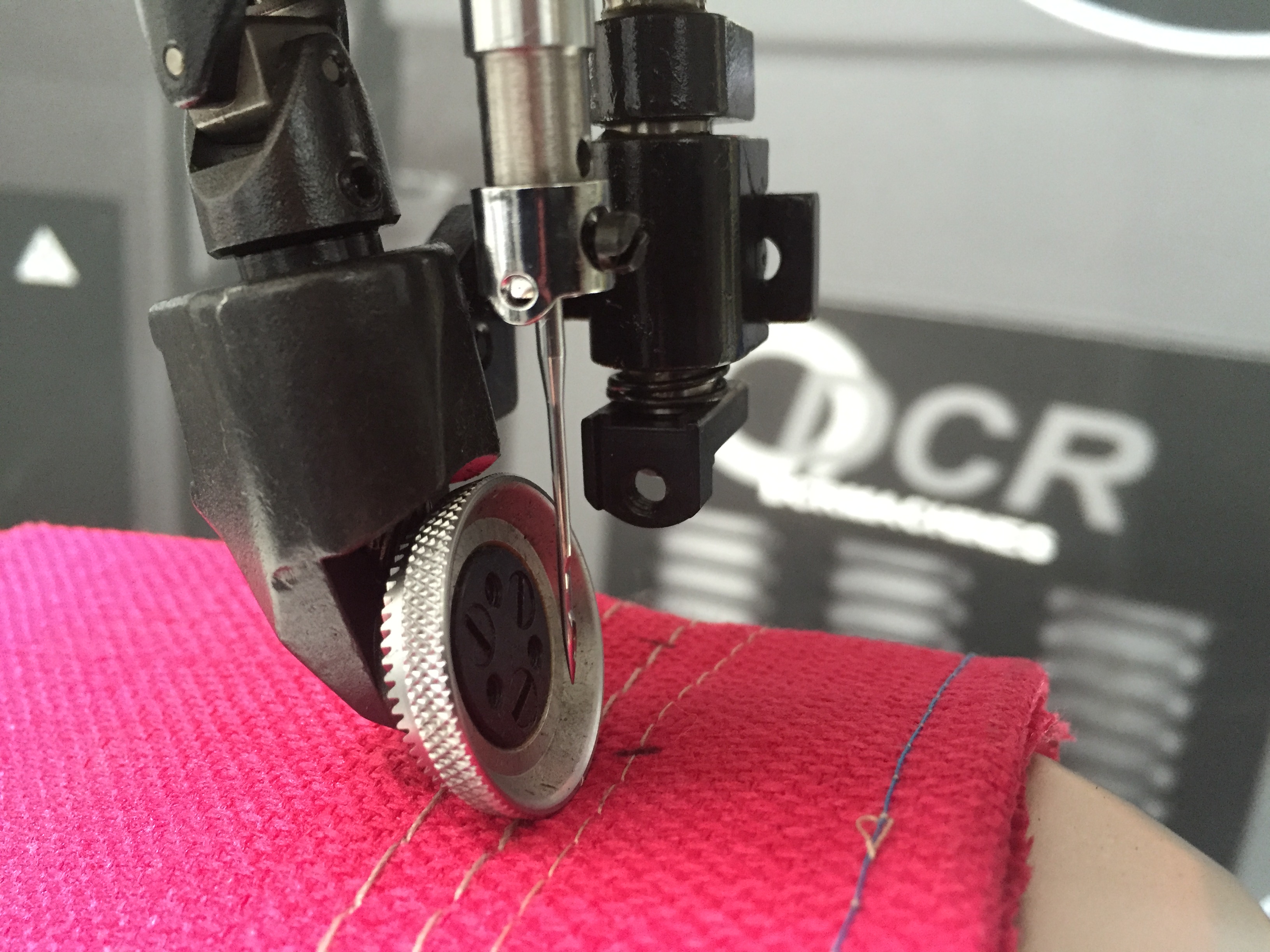

DCR PB1 is a fully automatic single needle postbed single needle lockstitch sewing machine. With combined triple feeding system utilizing: needle feed, bottom driven roller feed and top driven roller feed.

Automatic thread trimmer, foot lift and back tack.

The machine is designed for stitching light to medium material such as shoe vamps and uppers, straps, upholstery and difficult to handle items.

Also with driven trimming knife from above – right side of post. A vertical hook & base is fitted to the right or left of needle and a semi-automatic lubrication system is fitted.

Can be supplied in the following formats:
- Single Needle Right Post
- Single Needle Left Post
- Twin Needle Post
- As basic machines or with the following
- With Automatic Threadtrimming, Footlift & Backtack
- Also with driven trimming knife from above or below

The machine is designed for stitching light to medium material such as shoe vamps and uppers, straps, upholstery and difficult to handle items

A vertical hook & base is fitted to the right or left of needle and a semi-automatic lubrication system is fitted.

178mm Post bed height
Semi-automatic lubrication.
Up-to 7mm stitch feature
Max sewing speed: 2500rpm
Stitch length: 1.3 - 7mm
Needle bar stroke: 38mm
Post bed height: 178mm
Presser foot lift by foot: 14mm
Needle Type: DPx5 # 11-20

• Can be supplied with clutch motor or DCR 800W servo postion motor - 240v
