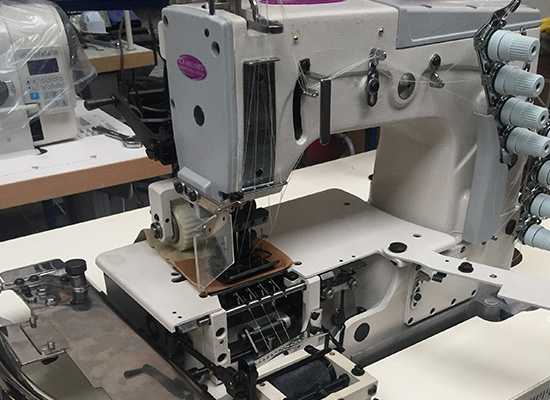

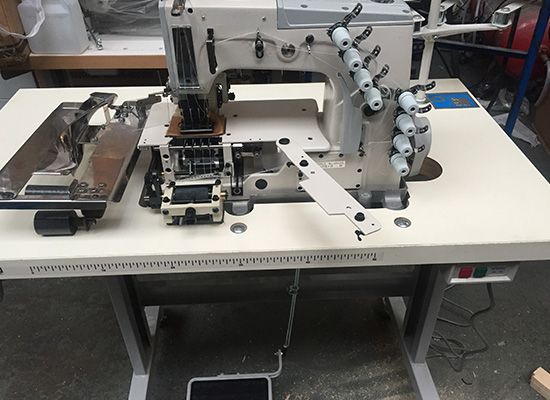

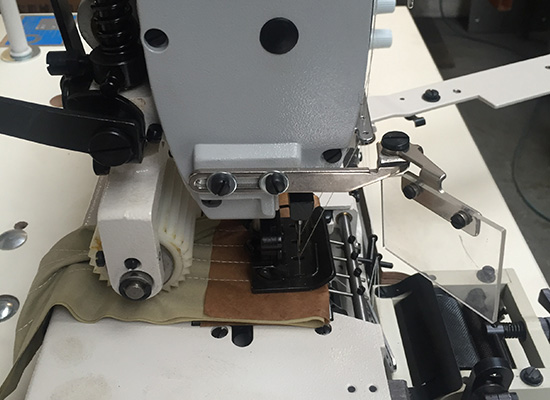

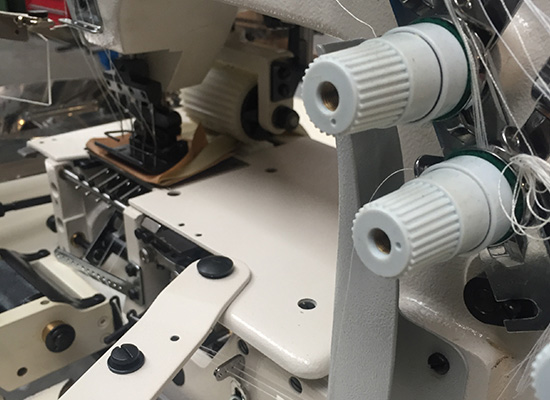

DCR BD4- Industrial Bonadex sewing Machine

Four needle, double chain stitch, flatbed machine. Supplied with DCR 800W servo position motor. Bonadex folders available on request. Fitted with a rear puller system.

Specification:

• MACHINE SPEED- 4500 spm
• STITCH TYPE- 401
• NUMBER OF NEEDLES- 4 - 12
• FEED TYPE- drop feed
• STITCH LENGTH- 1,5 - 3,6 mm
• FOOT LIFT- 12 mm
• NEEDLE TYPE- UY 113 GS


Features:

• Large shuttle hook assembly
• Extra heavy duty walking foot + triple feed
• 400mm long arm clearance
• Reverse stitch lever
• Large stitch feature
• Built-in bobbin winder
• Specification:
• Equipped with DCR 800w silent servo needle position motor
• Max sewing speed: 800rpm
• Stitch length: 0-11mm
• Needle bar stroke: 56mm
• Take up stroke: 96mm
• Presser foot lift by foot: 20mm
• Needle size: DYx3 #26
• Metric thread sizes 30 to 8



Options:

• Various sewing feet and piping attachments
• Edge guide
• LED needle light kit

• UK nationwide installation
• We also offer service and a breakdown service on all makes of industrial sewing machines
• If you cannot find a machine on our site please contact us - WE ALSO BUY SURPLUS MACHINERY
