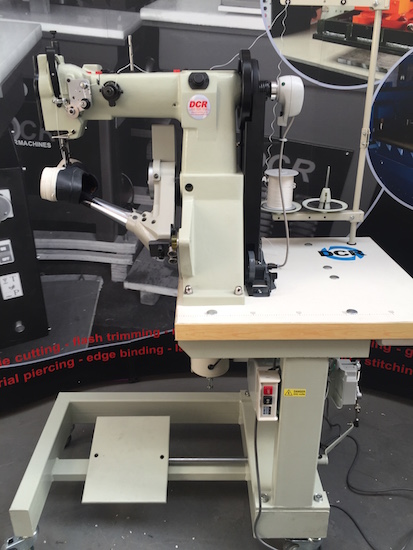

DCR SW1- Industrial Side Wall Stitching machine

Single needle double thread lockstitch machine for sewing box soles onto shoes and ankle boots.

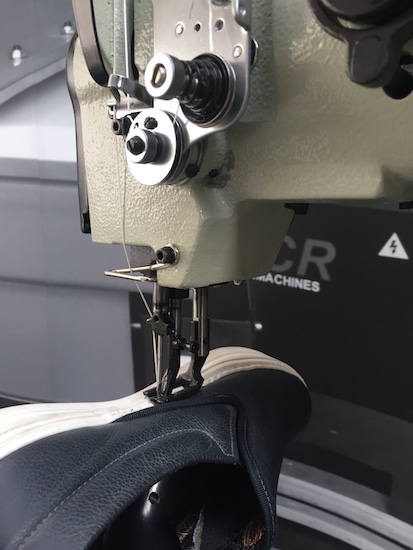

The machine has a rotation arm or horn which supports the shoe to make sewing easy around the toe and heel.
Equipped with Ho Hsing servo position motor and heavy duty foot lift solenoid.

We also supply pnuematic bladder bag presses for sticking the sole onto the upper prior to using the DCR SW1 side wall stitcher

Specification:

• MACHINE SPEED max 900 SPM
• STITCH LENGTH 3 - 13 mm
• SEWING THICKNESS 1,5 - 6 mm
• NEEDLE TYPE CPx5
• Can be supplied with clutch motor or DCR 800W servo postion motor - 240v
• UK nationwide installation
• We also offer service and a breakdown service on all makes of industrial sewing machines
• If you cannot find a machine on our site please contact us - WE ALSO BUY SURPLUS MACHINERY
