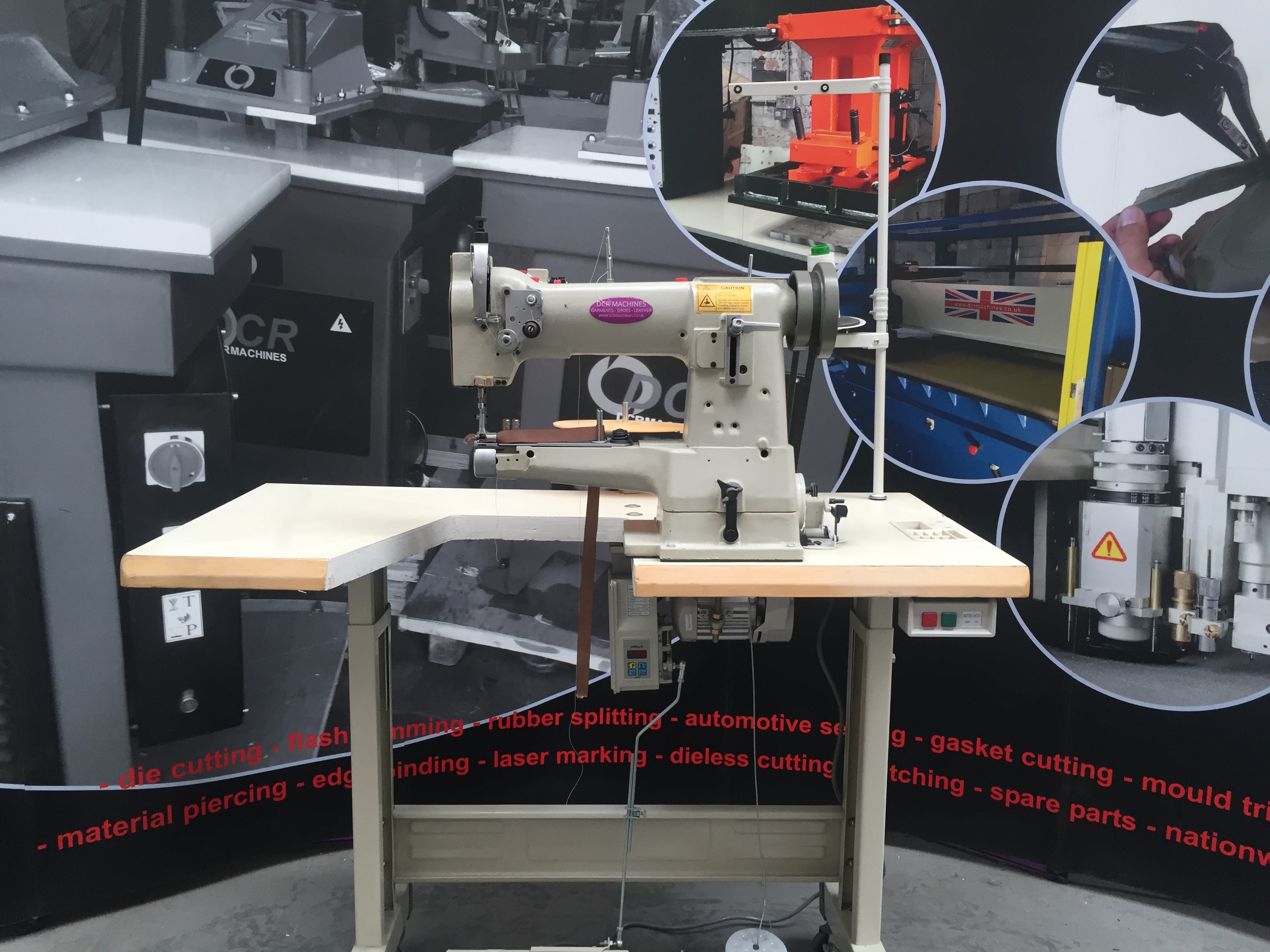

DCR 335 INDUSTRIAL CYLINDER ARM SEWING MACHINE

DCR335  compound feed, cylinder arm, heavy duty sewing machine (bottom feed, needle feed and walking foot feed) with large vertical axis hook & base. Driven by our 800W silent motor which provides a powerful and steady feed which enables you to sew multiple ply of medium to heavy weight material

DCR335 has a 71mm diameter heavy duty cylinder arm shape for use in production of leathergoods, bags, luggage, filters, seats, straps and upholstery. The large vertical axis hook and bobbin offers twice the normal thread capacity. The presser foot capacity is up to 14mm, allowing for a ease of use under foot.

Piping attachments are also available


Specification:

• Supplied complete with 800W silent servo needle position motor
• Large vertical axis hook
• Heavy duty cylinder arm 71mm
• Heavy duty triple feeding action
• High lifting foot assembly
• Reverse stitch lever
• Max sewing speed: 2200spm
• Max stitch length: 6mm
• Needle bar stroke: 33.2mm
• Take up stroke: 61.5mm
• Presser foot lift by foot: 8 – 15mm
• Needle size: DPx5 #20 - 23


Options:

• Various sewing feet and piping attachments
• Edge guide
• LED needle light kit
• UK nationwide installation
• We also offer service and a breakdown service on all makes of industrial sewing machines
• If you cannot find a machine on our site please contact us - WE ALSO BUY SURPLUS MACHINERY
