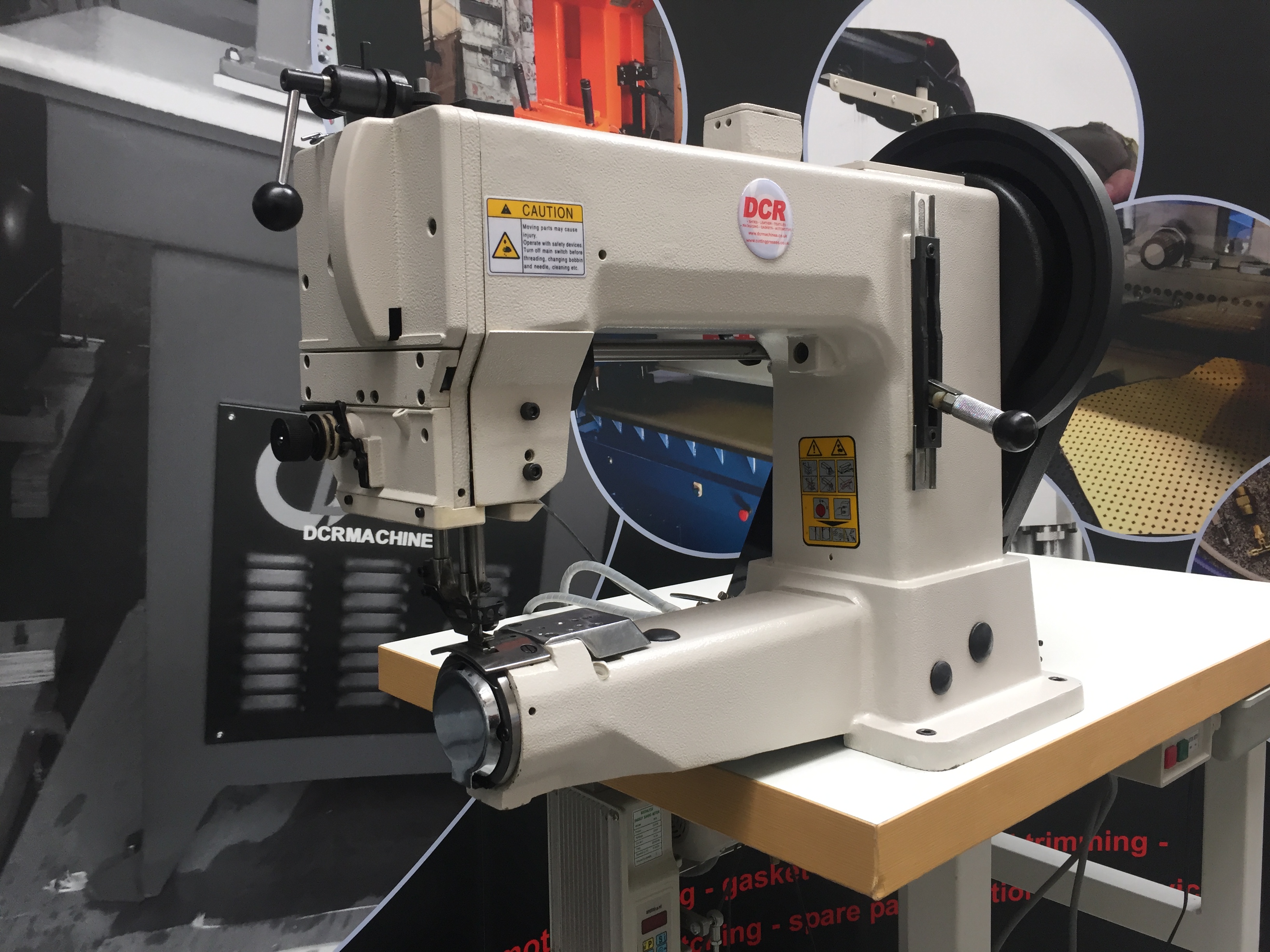

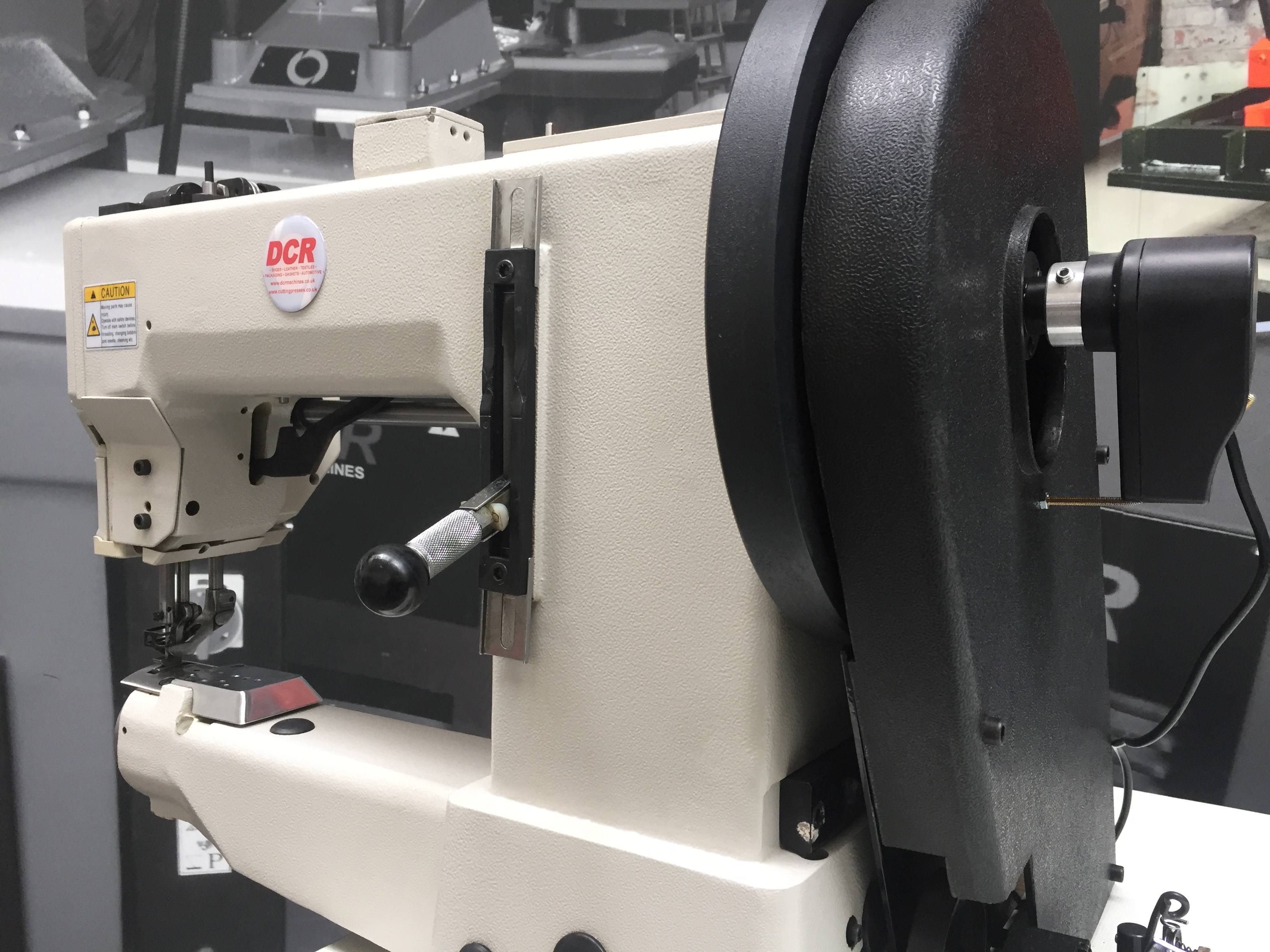

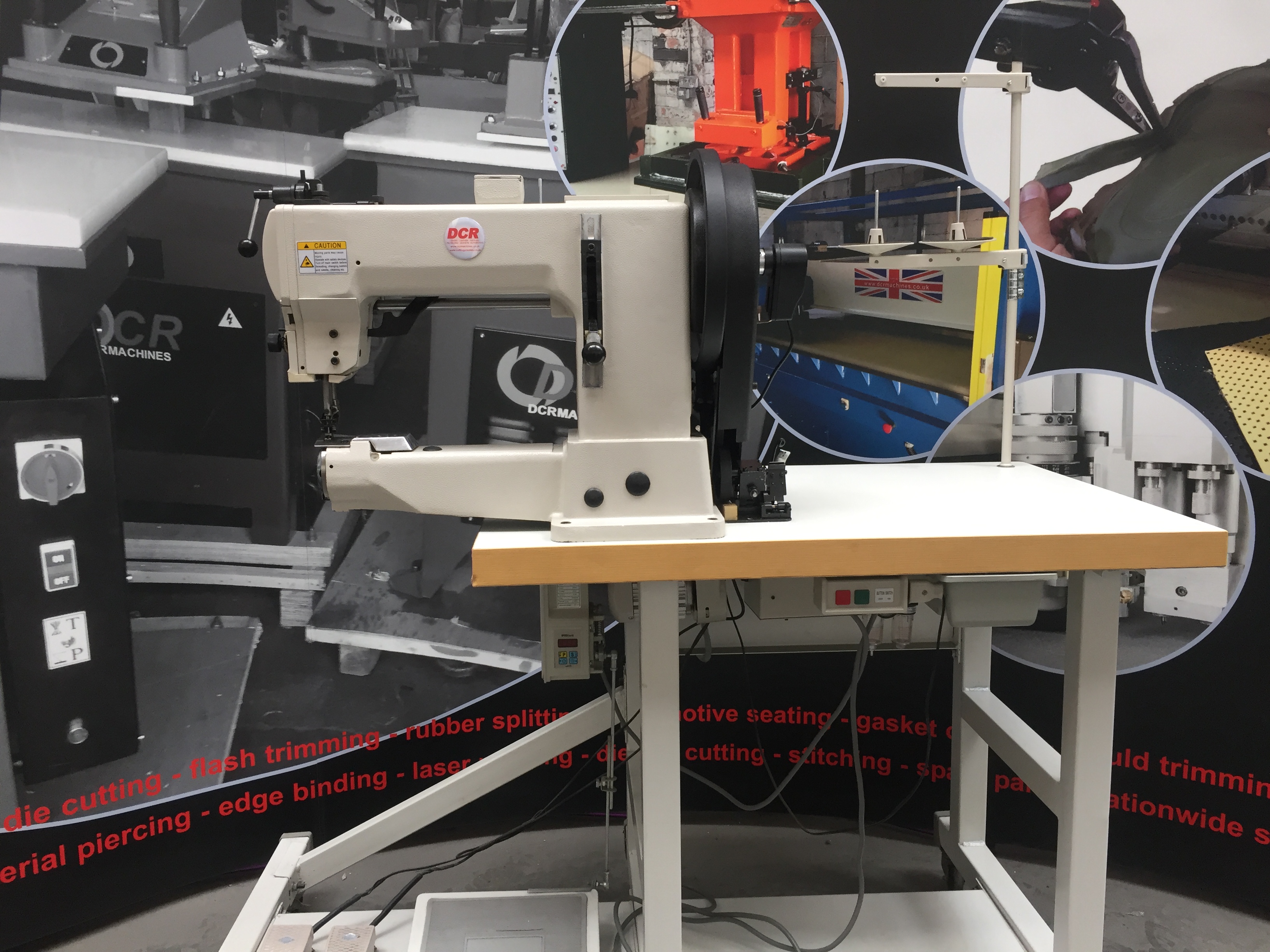

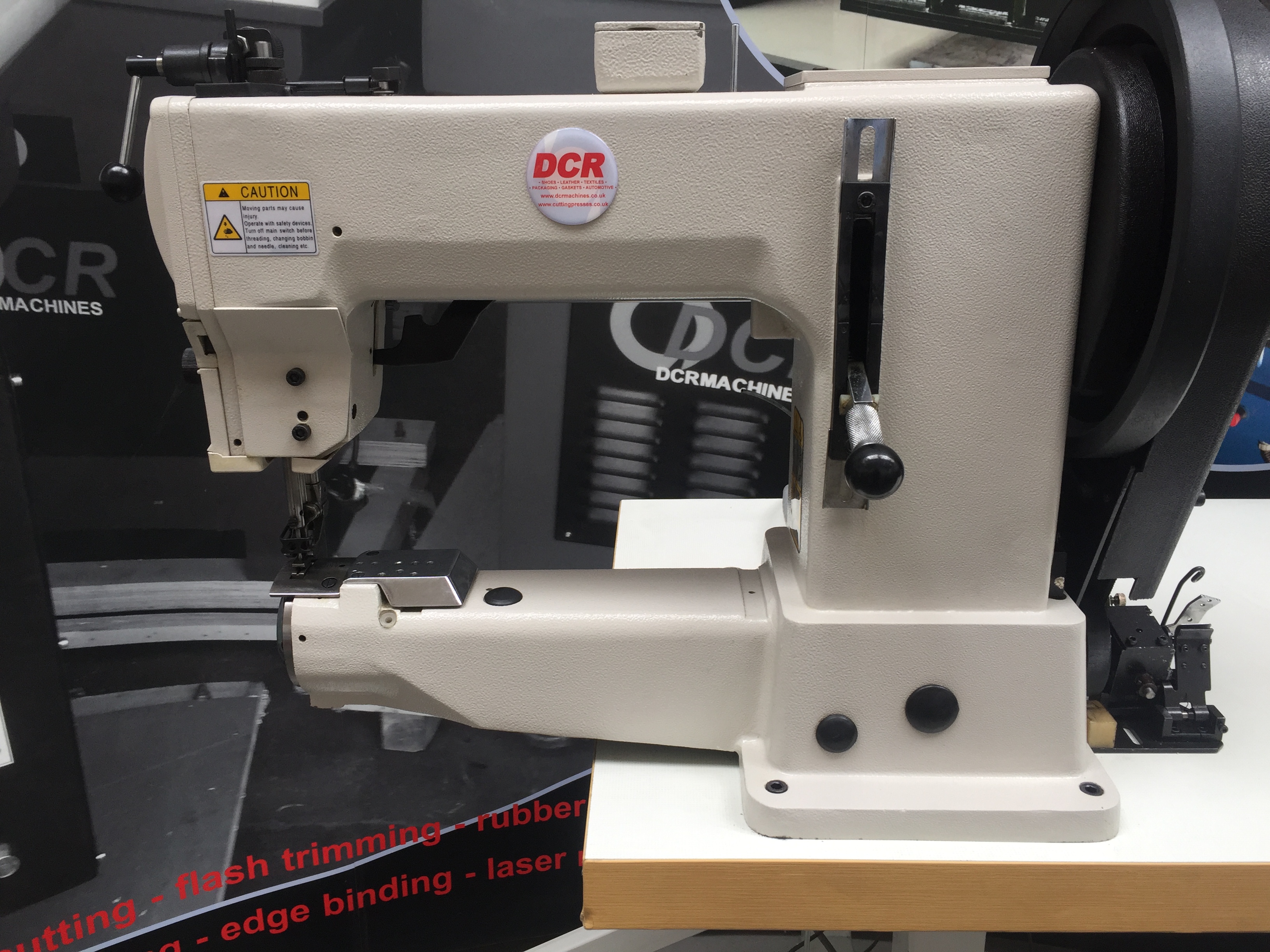

DCR 205-370- Industrial Heavy Duty Cylinder Arm

Heavy duty, walking foot cylinder arm sewing machine. Triple feed (bottom feed, needle feed and walking foot feed) for sewing heavy weight material such as Bags, saddles, seats, harnesses, safety belts, straps, stitch length of up-to 11mm and with an extra large shuttle hook and bobbin top mounted bobbin winder and presser foot with extra high lift of up to 20mm.

Features:

• Large shuttle hook assembly
• Extra heavy duty walking foot + triple feed
• 400mm long arm clearance
• Reverse stitch lever
• Large stitch feature
• Built-in bobbin winder
• Specification:
• Equipped with DCR 800w silent servo needle position motor
• Max sewing speed: 800rpm
• Stitch length: 0-11mm
• Needle bar stroke: 56mm
• Take up stroke: 96mm
• Presser foot lift by foot: 20mm
• Needle size: DYx3 #26
• Metric thread sizes 30 to 8

Options:

• Various sewing feet and piping attachments
• Edge guide
• LED needle light kit

• Can be supplied with clutch motor or DCR 800W servo postion motor - 240v
• UK nationwide installation
• We also offer service and a breakdown service on all makes of industrial sewing machines
• If you cannot find a machine on our site please contact us - WE ALSO BUY SURPLUS MACHINERY
